Python Pillow - ImageDraw.chord() Function

The ImageDraw.chord() method is used to draw a chord (a segment of a circle) inside a bounding box defined by two points(drawn from the start angle to the end angle). It is same as the arc() method but a straight line is connected between the endpoints. A chord of a circle is a straight line segment that connects two points on the circle's circumference.

Syntax

Following is the syntax of the function −

ImageDraw.chord(xy, start, end, fill=None, outline=None, width=1)

Parameters

Here are the details of this function parameters −

• xy − Two points that define the bounding box of the chord. It can be specified as a sequence of two tuples [(x0, y0), (x1, y1)] or as a flat list [x0, y0, x1, y1]. In either case, the condition x1 >= x0 and y1 >= y0 must be satisfied.

• start − The starting angle of the chord, measured in degrees. Angles are measured from 3 oclock, increasing clockwise.

• end − The ending angle of the chord, also measured in degrees.

• fill − The color to use for filling the chord.

• outline − The color to use for the outline of the chord.

• width − The line width of the chord's outline, in pixels. The default value is 1.

Examples

Example 1

This example draws a chord inside the specified bounding box with the default fill color, outline, and width.

from PIL import Image, ImageDraw

# Create a blank image
image = Image.new("RGB", (700, 300), "black")
draw = ImageDraw.Draw(image)

# Draw a chord inside a bounding box [(100, 10), (350, 250)]
draw.chord([(100, 10), (350, 250)], start=45, end=180)

# Display the image
image.show()
print('Chord is drawn successfully...')

Output

Chord is drawn successfully...

Output Image

Example 2

This example draws a chord inside the specified bounding box with a blue fill, a black outline, and a width of 2 pixels for the outline.

from PIL import Image, ImageDraw

# Create a new image with a white background
image = Image.new("RGB", (700, 300), "white")
draw = ImageDraw.Draw(image)

# Draw a chord inside the bounding box
draw.chord([(100, 10), (350, 250)], start=30, end=300, fill="blue", outline="black", width=2)

# Display the images
image.show()
print('The Chord is drawn successfully...')

Output

The Chord is drawn successfully...

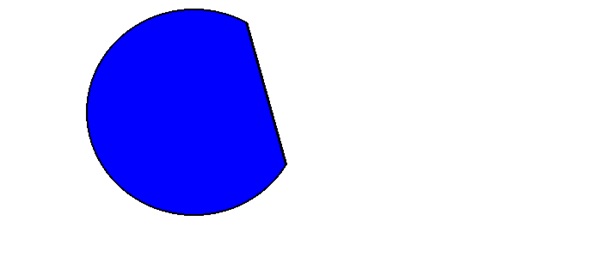

Output Image

Example 3

The following example demonstrates how to draw a chord on an existing image with different parameters.

from PIL import Image, ImageDraw

# Open an Image
image = Image.open('Images/ColorDots.png')

# Create the draw object
draw = ImageDraw.Draw(image)

# Draw a red chord inside a bounding box
draw.chord([(250, 130), (440, 260)], start=30, end=270, fill="red", width=10)

# Display the image
image.show()
print('The chord is drawn successfully...')

Output

The chord is drawn successfully...

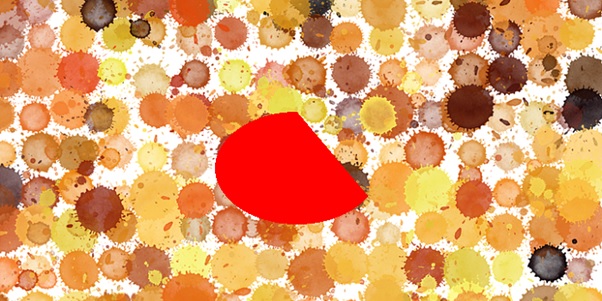

Output Image
